STRIKER-800®

Shale

Cluster

Batch Drilling Rig Package

Features

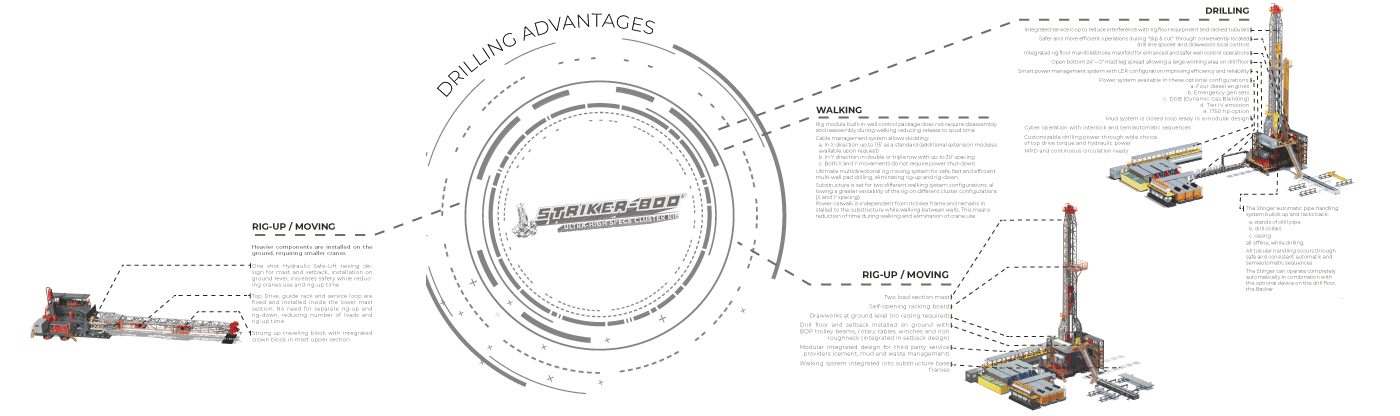

Drillmec designed an innovative, flexible and efficient cluster drilling rig package to provide a top solution for optimal batching operations on multiple lines bringing several advantages.

Main features:

Striker-800® is the first off–the-shelf design for the ultimate shale drilling rig package in a space efficient and simple layout.

Striker-800® maximizes safety while reducing rig-up and moving time and improving cluster and batch drilling per­formance with efficiency and reliability.

Among the key features the Side Cellar configuration with clearance to walk on wellheads and the patented One-Shot Hydraulic Safe-Lift raising of mast make the Striker-800®unique.

Specs

Description

Mast

Cantilever type, Hydraulic Safe-Lift. Straight legs 800,000 lbs. Static Hook Load on 12 lines. 137 ft Clear Height, 1,3/8" drill line. Two hydraulic cylinders for raising.

Substructure

Hydraulic Safe-Lift type, Side-Cellar. 800,000 lbs rotary capacity. 600,000 lbs setback capacity. 32 ft drill floor height. Raised simultaneously with the mast.

Drawworks

1,500 hp continuous duty power. Single speed planetary gear box. Multidisc emergency/parking brake. One 1,500 hp AC traction motor.

Top Drive

1,000,000 lbs load rating. 51,400 ft*lbs max continuous torque. 265 rpm max speed.

Traveling Block

Split type. 1,000,000 lbs load rating. Six sheaves grooved for 1.3/8" drill line.

Power Tong

4.1/8"-8.1/2" OD range. 60,000 ft-lbs max make-up torque. 80,000 ft-lbs max break-out torque.

Drill Floor Equipment

One hydraulic cathead. Two 10,000 lbs utility winches. Automated power slip. Hydraulic elevator. Man rider.

BOP Handling System

50 ton rated lifting capacity. Two beams with air operated trolley hoist. Two test stumps integrated in substructure.

Mud Pumps

Two 7,500 psi, 1,600 hp rated. One 1,500 hp AC traction motor each.

Mud System

1,500 bbl Three tanks. Treatment tank and trip tank on substructure. Three shale shakers, One degasser, One desilter, Two mud mixing hopper, One mud gas separator. Centrifugal pumps and low profile agitators prearranged for expansion & closed loop treatment.

Rotary Table

27.1/2"

Racking Capacity

26,000 ft of 5" drill pipe + BHA

Catwalk

Range 2 and 3 tubulars. 20" maximum tubular diameter. 10,000 lbs maximum lifting capacity.

Power System

Three generators. Smart power management with LER house.

Auxiliaries

One 500 bbl water tank. One 400 bbl fuel tank with fuel filtration system. One cold start compressor. Two 60 hp rotary screw compressors. One desiccant air dryer. One HPU. Data Acquisition System.

Choke Manifold

3.1/16" 10,000 psi. Drill floor mounted.

BOP Equipment

One 13.5/8" x 5,000 psi Annular. One 13.5/8" x 10,000 psi Single. One 13.5/8" x 10,000 psi Double.

Accumulator

One Seven station

Optional

Mast dollies. Cable management system extension. Third mud pump. 2,200 hp mud pumps. Fourth genset. Tier 4 genset. One emergency genset. Dual fuel dynamic gas blending system. 1,750 hp rated 3512C genset. 65,300 ft-lbs max continuous torque Top Drive. 100,000 ft-lbs max break-out torque Iron Roughneck. Closed loop mud system units. Winterization. Rotating mouse hole. CCTV system. Communication system. Fire and Gas detection system.
